MS-5010BP

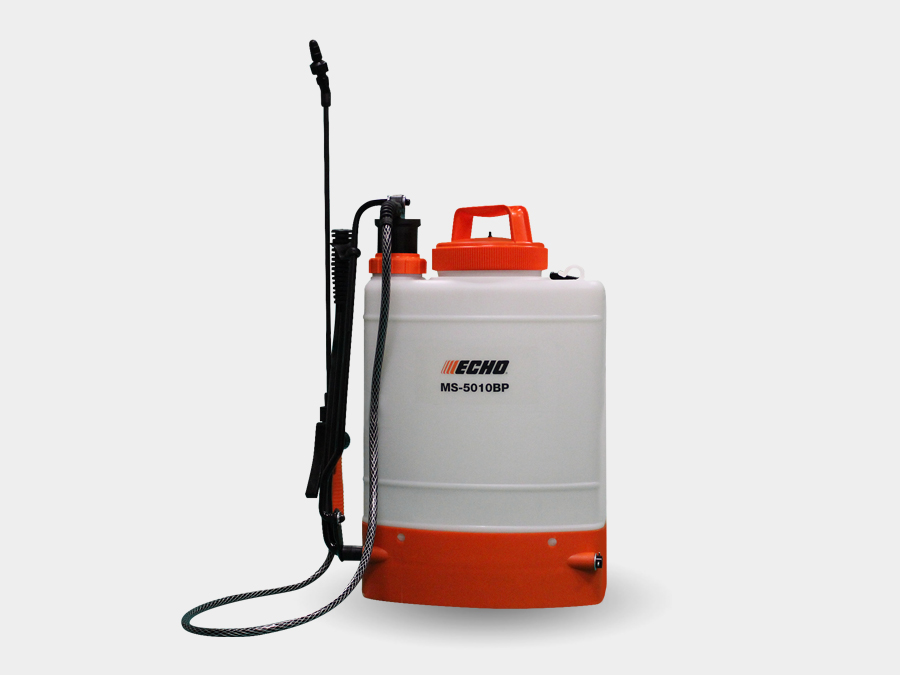

The ECHO MS-5010BP is a premium quality, professional-grade, heavy-duty Backpack Manual Sprayer. Built for heavy day-to-day use, it will provide many years of service. Offering a large capacity 18.9 l (5 gal.) tank for extended operations, it can either be used for turf or agricultural applications to spray herbicides, fertilizers, and more.

TOP FEATURES
  • 18.9 l (5 gal.) tank with wide mouth opening
  • Four nozzle types included for a variety of applications
  • Professional-grade 53.3 cm (21 in.) fiberglass wand with 127 cm (50 in.) nylon-reinforced hose

Features

SUPER-SIZED SPRAYING

19.9 l (5 gal.) capacity tank with wide opening
For quick and easy filling
Four nozzle types for a variety of applications including:
Adjustable, flat fan, hollow cone and jet stream
Professional-grade 53.3 cm (21 in.) fiberglass wand with 127 (50 in.) hose
For outstanding reach and productivity
Heavy-duty, nylon-reinforced hose
Provides extended durability and chemical resistance
6.3 kg/cm2 (90 PSI) piston-style pump
For long-distance spraying
Commercial-grade control valve
Features a rubber grip for more comfort
Tank cap with built-in carry handle
Includes clips for wand storage while transporting
Heavy-duty, padded shoulder straps with waist belt
CTA here if needed based on assets (video, PDF, link)

Specs

Tank Capacity (L/gal) 18.9/5
Max Pressure Rating kfg/cm2 (psi) Up to 6.3 (90)
Dry Weight (kg/lbs) 5.9/13.1
Pump Type Piston
Hose Length (cm/in) 127/50
Wand Material Fiberglass
Nozzle Type Adjustable
Wand Length (cm/in) 53/21
Sprayer Type Backpack
Seal Type Chemical resistant
Locking Spray Handle Yes

Technical Documents
