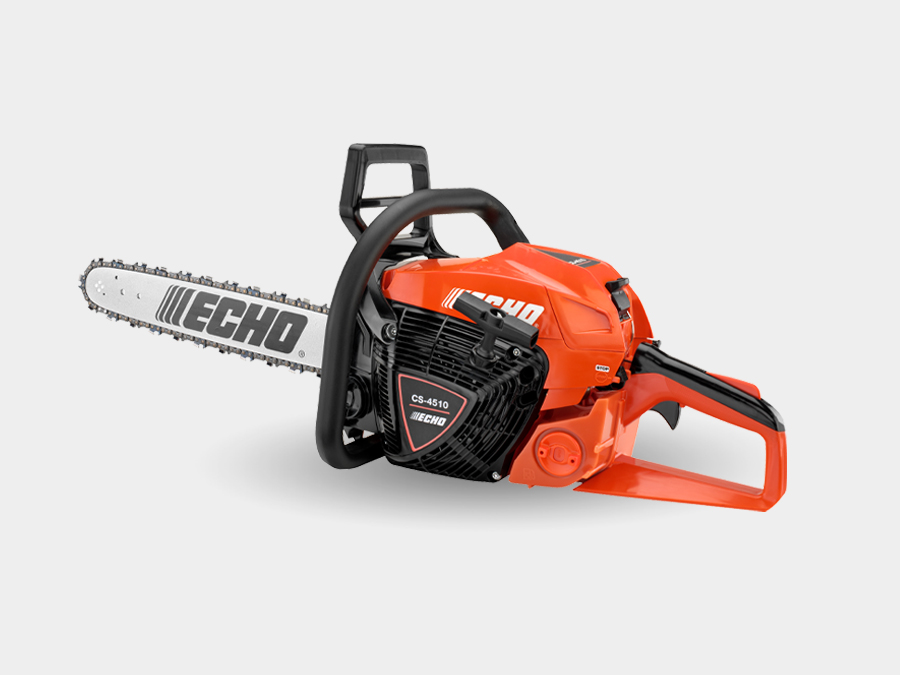

CS-4510
A simply reliable cutting machine. Whether the work calls for seemingly endless storm cleanup or bucking loads of firewood, the CS-4510 delivers power and performance for the long haul.
TOP FEATURES- 45.0 cc professional-grade, 2-stroke engine
- Spring-assist starter reduces starting effort
- Heavy-duty air filter with tool-less access provides superior air filtration
CS-4510
Features
THE OWNER OF A HARD-EARNED REPUTATION
Three-point spring vibration-reduction system
Delivers operator comfort
Automatic, adjustable oiler
Matches the cutting conditions for reduced oil consumption
Choke with automatic fast idle
Provides for easy starting
Dual-post chain brake
Increases durability
Momentary stop switch
Automatically returns to "ON" position
Purge bulb
Delivers fresh fuel to carburetor for easier starts
Side-access chain tensioner
For easy chain adjustments
Spring-assist starter
Reduces starting effort
Available in 50cm (20 in.) bar length with 20BPX chain
Low-vibration cutters make for smoother cuts
Specs
| Engine Displacement (cc) | 45 |
| Engine Displacement (cu in) | 2.75 |
| Starting System | Spring-Assist |
| Ignition System | Digital |
| Oiling System | Automatic/adjustable |
| Vibration Reduction System | Standard |
| Available Bar Lengths (cm/in) | 50/18 |
| Oil Capacity (L/floz) | 0.33/11.1 |
| Dry Weight (kg/lb) | 5.0/11.1 |
| Sprocket Cover | Plastic |
| Bar Type | Laminated |
| Sprocket Type | Spur |
| Handle | Rear |
| Fuel Capacity (L/fl. oz) | 0.48/16.2 |
| Carburetor (w/Purge Pump) | Butterfly-Valve Diaphragm |
