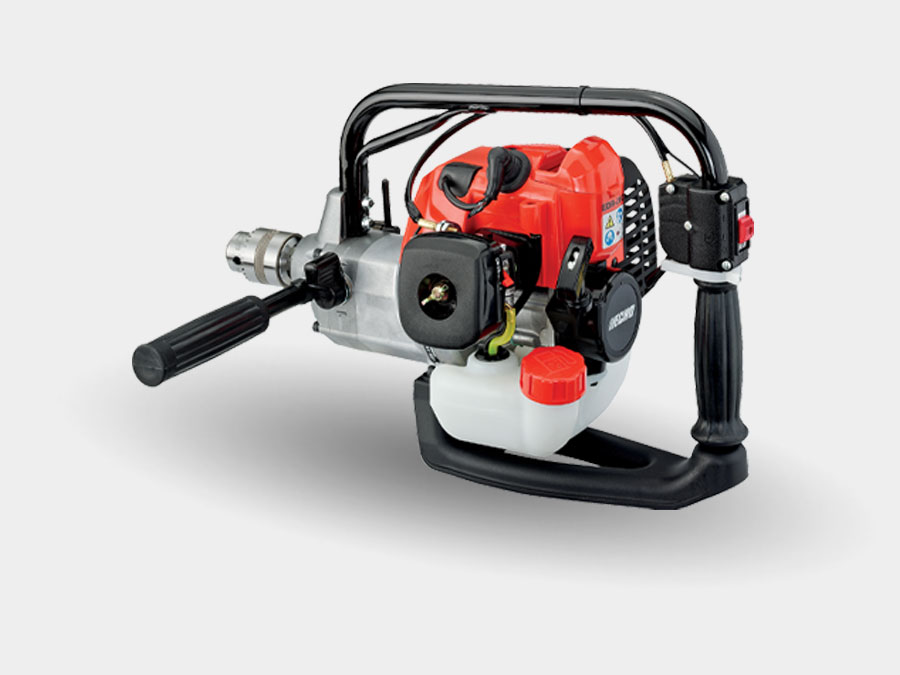

EDR-260

With high-torque performance, easy starting, ergonomic features and any-angle operation, the professional-grade EDR-260 engine drill is built for all-day productivity. It performs how you need, where you need, as long as you need.

TOP FEATURES
  • Heavy-duty high-torque gear case for maximum drilling performance
  • Convenient reverse function

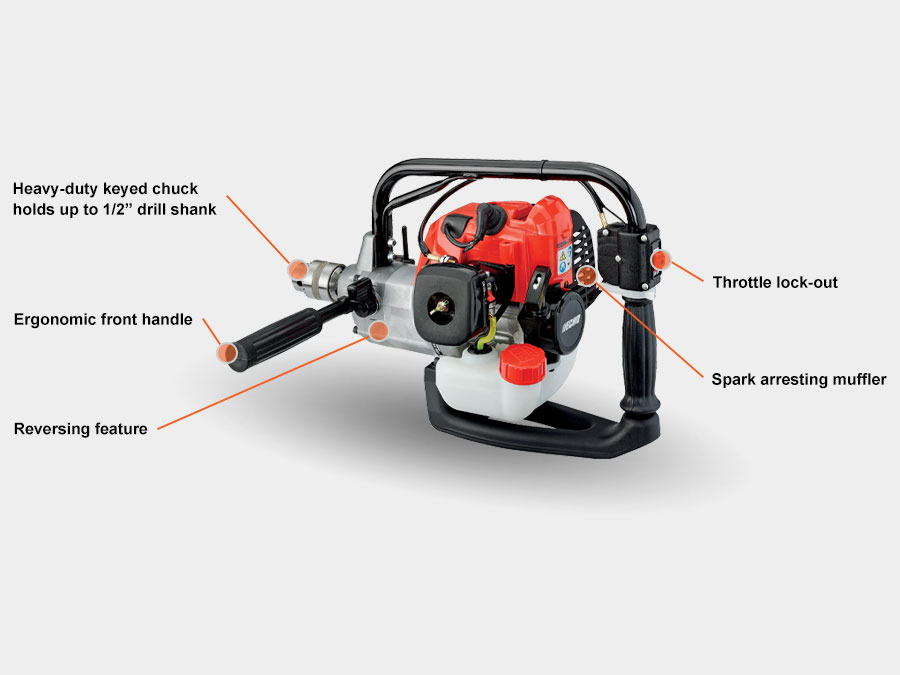

Features

A HEAVY DUTY HOLE-MAKER

25.4 cc professional-grade, 2-stroke engine
For outstanding performance and durability
All-position diaphragm carburetor with purge pump
Allows operation at any angle
Ergonomic front handle
Provides a comfortable grip for long hours of operation
Heavy-duty 17.1:1 gear reduction
Converts engine power into tough drilling torque
Reversible function
For operator convenience and versatility
Heavy-duty keyed chuck
Holds up to 1/2 in. drill shank
Throttle lock-out
Prevents accidental drill bit rotation

Specs

Engine Displacement (cc) 25.4
Starting System Standard
Fuel Capacity L (fl. oz) 0.57 (19.6)
RPM 0-650 Forward/Reverse
Dry Weight kg (lbs.) 5.17 (10.7)
Gear Reduction Ratio 17:1:1
Torque (ft lb/Nm) 16.3 (12)
Maximum Chuck Diameter cm (in) 1.27 (1/2) Standard
