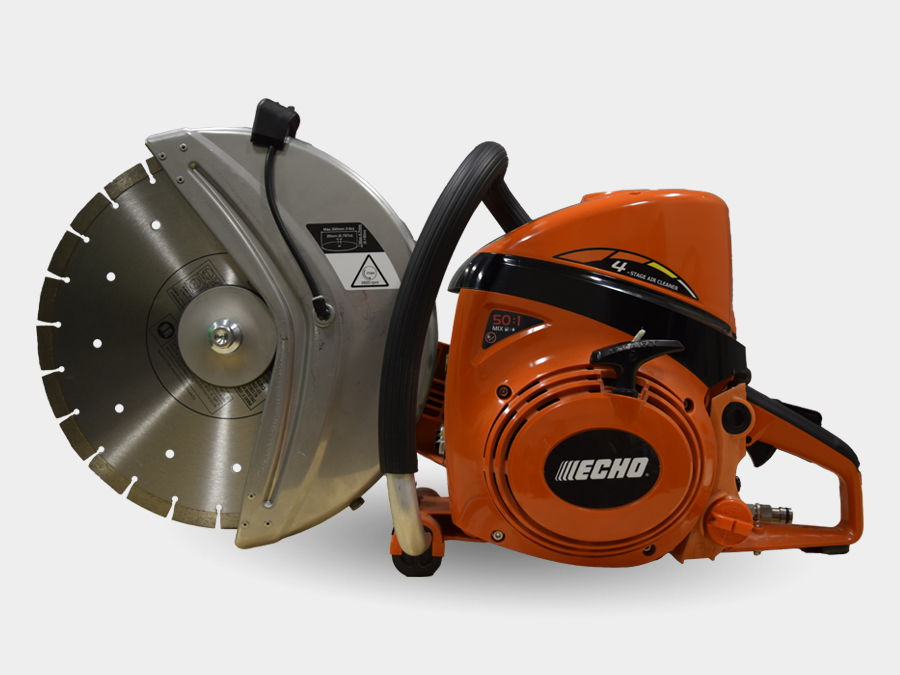

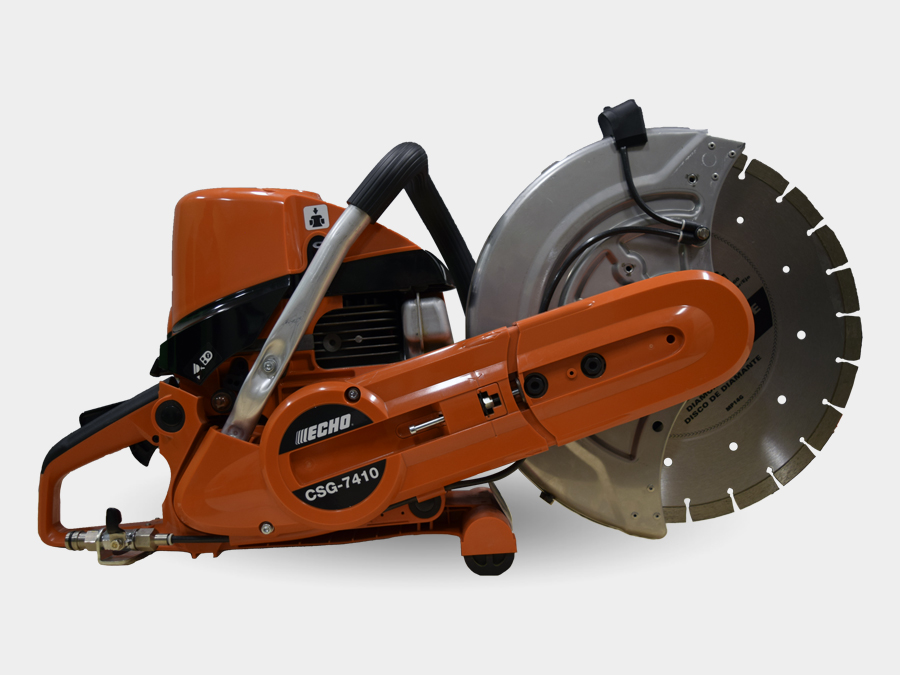

CSG-7410

Easy cuts for hardscape pros. The best-in-class CSG-7410 cut-off saw features a high drive ratio for improved cutting through thick masonry blocks and dense concrete. Its durable, user-friendly design includes a four-stage air filtration system and a quick-release hose adapter.

TOP FEATURES
  • Class-leading high-torque drive system
  • Patented 4-stage air cleaner provides the engine with clean air for long life
  • Easy starting system includes reduced effort starter and decompression valve

Features

MAKE CUTS WITH BEST-IN-CLASS TORQUE

73.5 cc professional-grade, 2-stroke engine
For outstanding performance and durability
Decompression valve
For easier starter pulling effort
Purge bulb
Provides fresh fuel to carburetor
Reversible cutting head
Can be moved to enable cutting near a wall or close to the ground
Brass water valve
Controls flow of water
Abrasive wheel included
For general cutting. Diamond wheel sold separately
Four-stage air filtration system
Protects engine from harmful dust ingestion
Momentary stop switch
Automatically returns to "on" position
Side-access belt tensioner
For easy belt adjustment

Specs

Engine Displacement (cc) 73.5
Max. Engine Speed (rpm) 9,800
Max. Spindle Speed (rpm) 3,820
Drive System Ratio 2.6
Arbor Size (mm) 20 & 25.4
Dry Weight (kg/lbs) 10.7/23.6
Fuel Capacity (L/fl. oz) 0.70/23.7
Wheel Diameter (cm/in) 35.5/14
Start/Stop Switch Momentary
Decompression Valve Yes
Purge Bulb Yes
Choke w/Fast Idle Yes
Max. Cutting Depth (cm/in) 12.5/4.9
Wheel Included Abrasive
